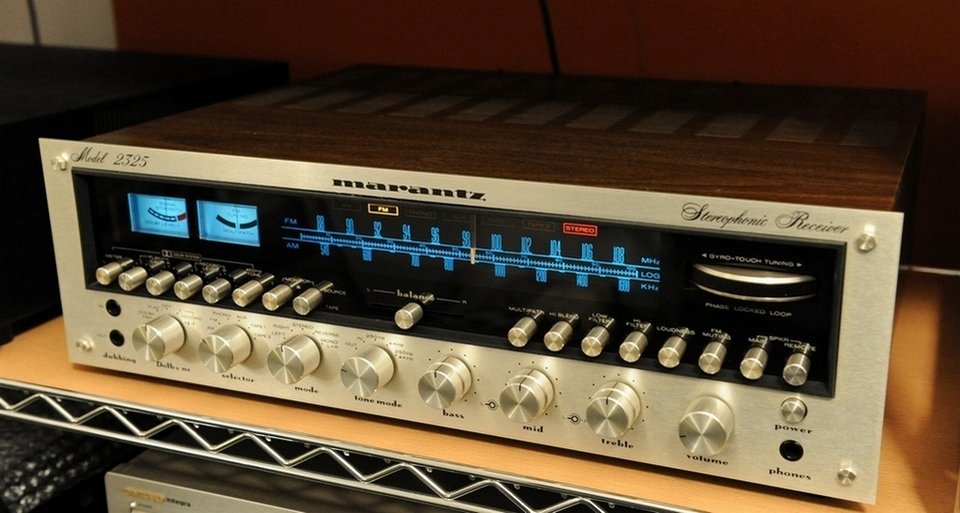

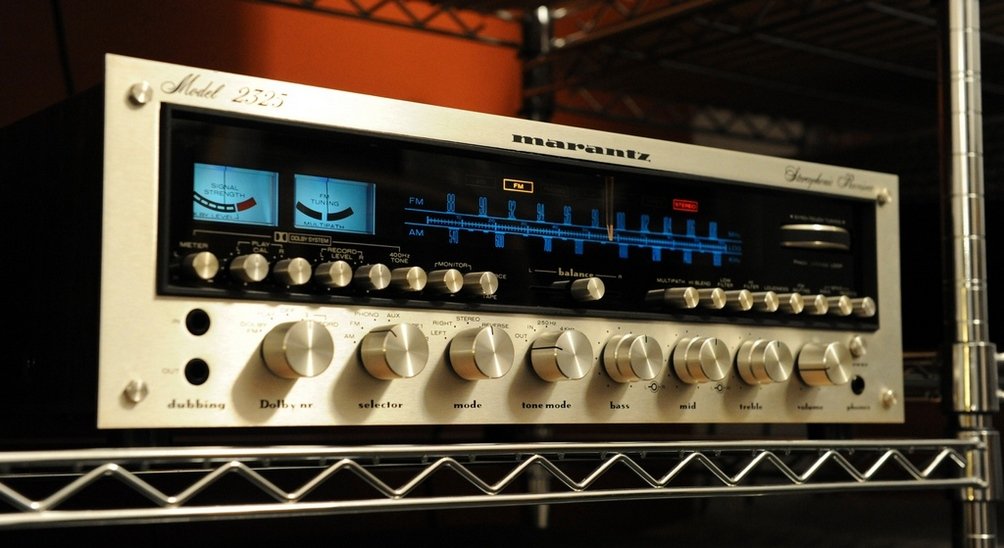

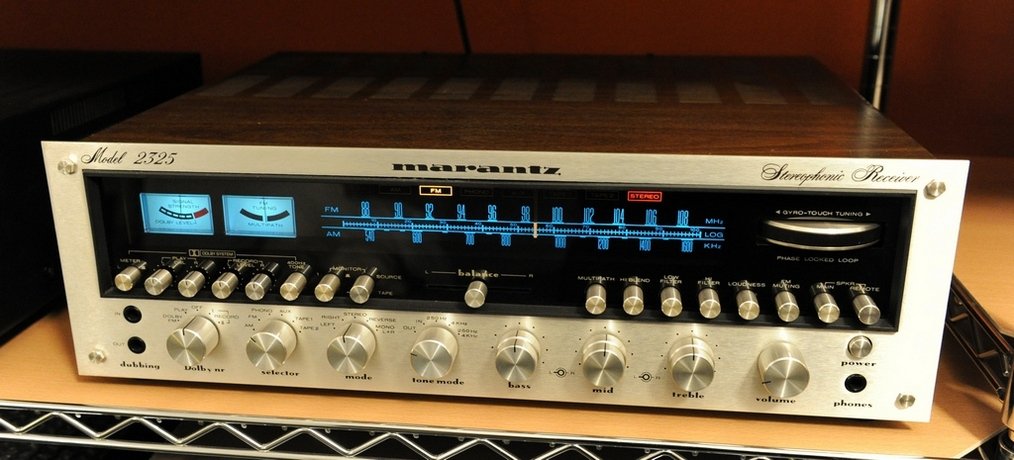

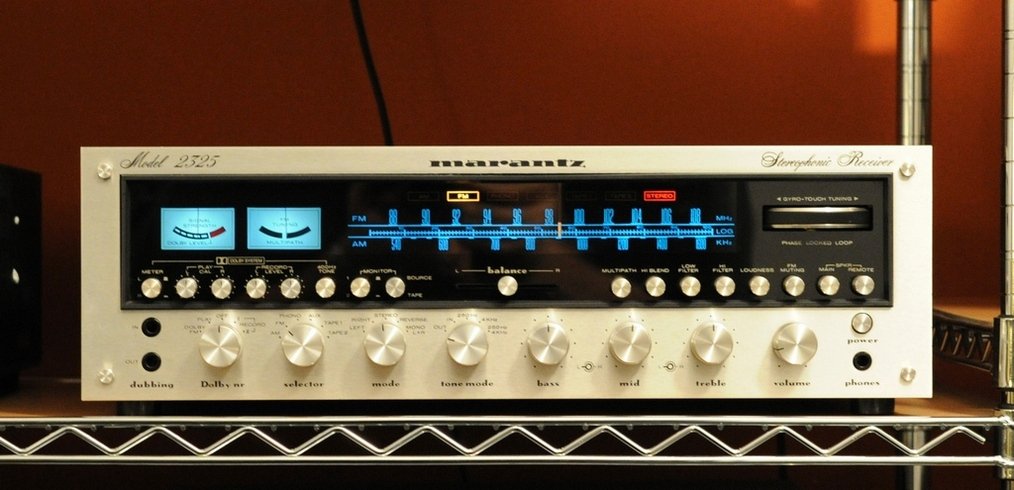

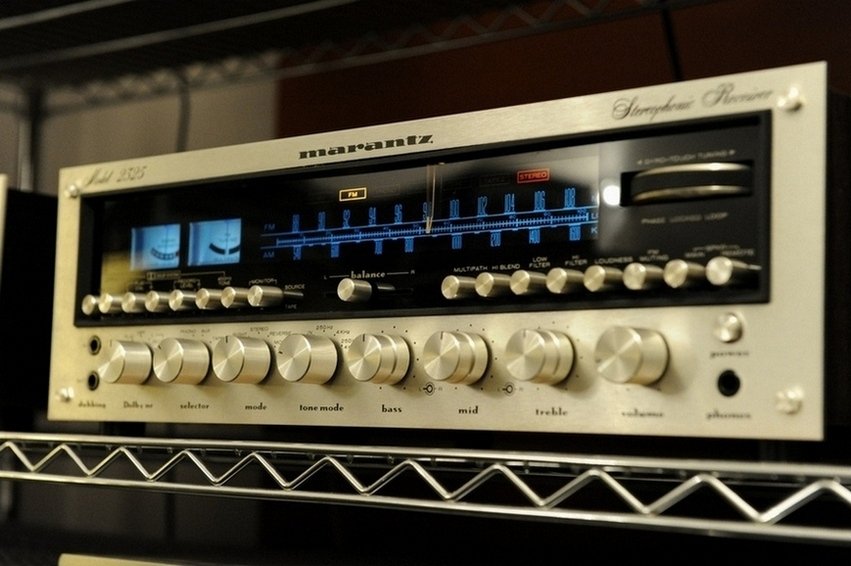

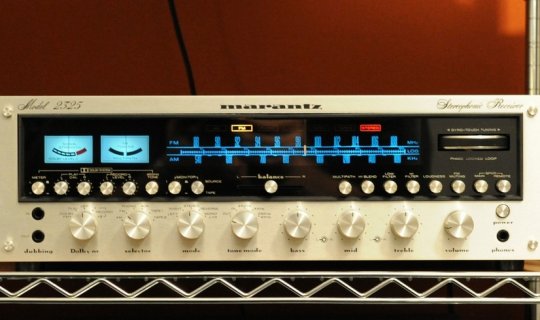

Marantz 2325

General
Rarity Common
Retail Price 799.95, October 1st 1974 Marantz Dealer List
First Year 1974
Last Year 1976
Wood Case WC-123,WC-43
Blue Face Yes
Channels Two
Speaker Connections Two sets
Chassis Ground Binding post
AC Switch Yes
Fusing 8 Amp, on rear
Switched AC Outlets 1
Unswitched AC Outlets 1

Physical
Width 19-5/16
Height 5-3/4
Depth 15-3/16
Weight 49.5, 57.2 lbs Packed

Amplifier
RMS Power Per Channel 125 @ 8 ohms
Damping Factor @ Load Impedance 70
Total Harmonic Distortion (THD) 0.1%
Power Bandwidth 20 hz - 20 khz
Frequency Response +/- 0.2 dB
Intermodulation Distortion (IM) 0.1%

FM Tuner
Gyro Tuning Yes
400 Hz Alignment Tone yes
RF Sensitivity 1.8 uV
300 Ohm Binding Posts yes
75 Ohm Binding Posts yes
50 dB quieting sensitivity, Mono 5.0 uV
Ultimate Quieting 75 dB
THD, Mono 0.15%
THD, Stereo 0.30%
Signal to Noise Ratio, Mono 70 dB
Signal to Noise Ratio, Stereo 60 dB
Frequency Response 30 hz to 15 khz, +/- 1.5 dB (S), +/- 1.0 dB (M)
Hum and Noise 70 dB (M), 60 dB (S)
Capture Ratio 1.25 dB
IF Image Rejection 100 dB
IF Rejection 100 db
Alternate Channel Selectivity (wide or normal) 080 dB
Spurious Rejection 100 dB
AM Carrier Rejection 62 dB
Stereo Separation at 1 kHz 42 dB
Carrier Suppression 65 dB
Mono Switch yes
Signal Strength Meter Yes
Center Tuning Meter Yes
Multiplex Filter (Hi-Blend) yes
Stereo Lamp Yes
Dolby Lamp yes
FM Mode Lamp yes
Multipath Metering Yes
Muting Switch yes
Muting Adjustment on rear
Dolby FM Decoding Standard yes,+ rear adjusts
Quadradial Output (FM Discriminator output, unequalized) Yes
Illuminated Dial Pointer yes

AM Tuner
RF Sensitivity 20 uV
Signal Strength Metering Yes
External Ferrite Antenna yes
Antenna binding Posts yes

Preamplifier
Multiple Bass Adjustments yes
Multiple Midrange Adjustments yes
Multiple Treble Adjustments yes
Tone Control Defeat yes
Bass Turnover Options 500 or 250 Hz
Treble Turnover Options 2 or 4 kHz
High Filter yes
Low Filter yes
Gain Control Single control
Loudness Contour switch
Mono L,R,L+R
Channel Reverse yes
Balance Yes
Number of Tape Monitors two + front 3rd
Tape to Tape Dubbing Yes, via jacks
Auxillary Input Source yes
Phono Input Source yes
Illuminated Source Indicators yes
Source Tape Input (as opposed to a tape monitor) yes
2nd Source Tape input (as opposed to a tape monitor) yes
Tape Monitor yes
2nd Tape monitor yes
Record Level Set yes, R+L
Playback Level Set yes, R+L
Preamp to Amplifier Jumper(s) yes
Dolby Tape full facilities + metering
Headphone Jack(s) Yes
Speaker Selection Nomenclature main, remote
Signal to Noise Ratio 96 dB

źródło: www.classic-audio.com/marantz/2325.html
