Luxman SQ 500

Opublikowano: 31 maj 2010
0.00


Producent: Luxman
Dodany przez: audiofilek PL

OPIS:

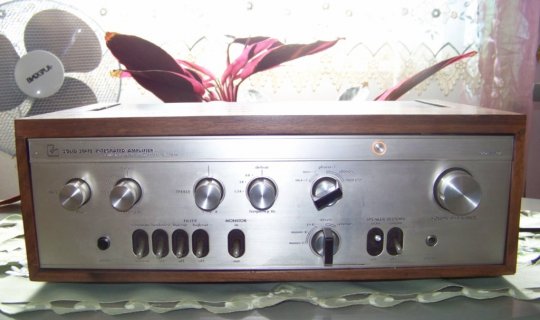

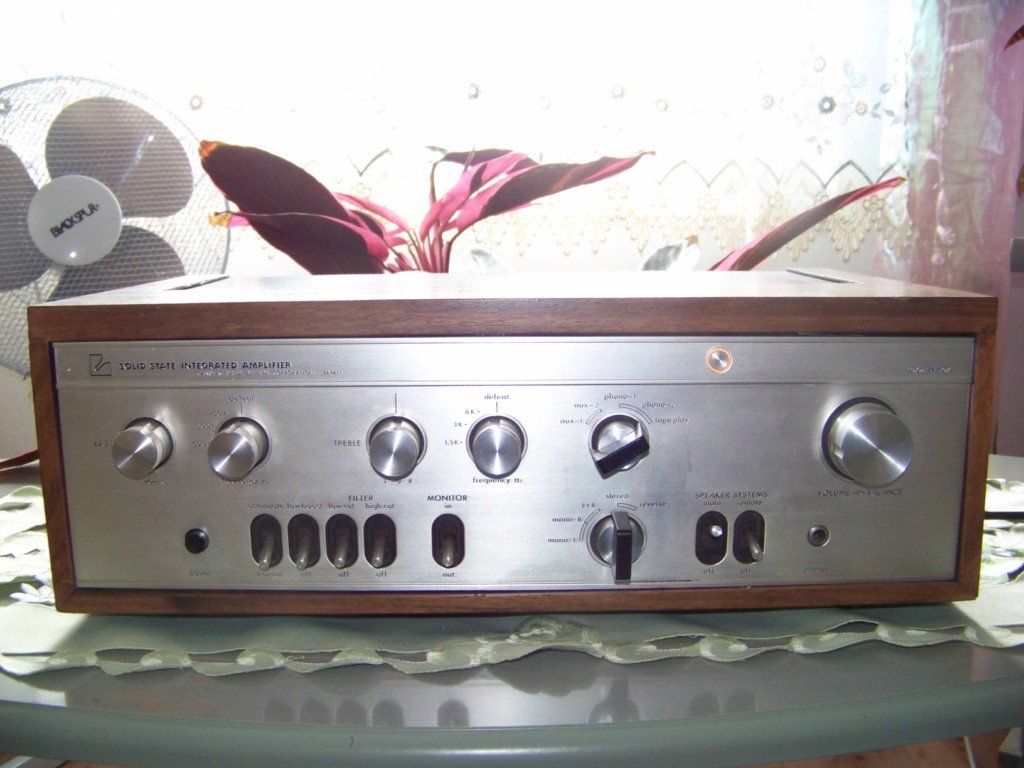

Luxman SQ 500
Solid-state Integrated Amplifier

Power amplifier part
---------------------
Consecutive output 60W60W (8ohms)
40W40W (16ohms)
THD 0.2% or less (60W, 8ohm, 1kHz)
Frequency characteristic 50000Hz [ 10Hz - ]-less than 1dB
Input sensitivity 800mV (at the time of the maximum output)
Input impedance 50kohm
Remains noise 0.5mV or less
Dumping factor (1kHz) 35 (8ohms)
70 (16ohms)
Attachment Attenuator -12 dBoct.
A, B speaker change-over switch
Headset jack

Preamplifier part
---------------------
Frequency characteristic 50000Hz [ 20Hz - ]-less than 1dB
THD 0.1% or less (1kHz, 1V)
Remains noise 100 microvolts or less
Input sensitivityimpedance Phono12mV30kohm, 50kohm, 100kohm
Phono22mV50kohm
More than AUX1100mV (a coordination is possible) 100kohm
AUX2100mV200kohm
Tape Play 100mV100kohm
SN ratio Phono1, 260dB or more
AUX1, 2, Tape Play 70dB or more
Crosstalk (1kHz) Between channels 55dB or more
Between input classification 70dB or more
Tone control With a curving [ LUX scheme NF type ] point switching
Loud sound 1.5k, 3k, 6kHz, defeat
Bass 600, 300 or 150Hz, defeat
Attachment A low boost 80Hz, 6 dBoct.
A high cut 5kHz, -6 dBoct.
A low cut 100Hz, -6 dBoct.
Tapes monitor DIN connector
The semiconductor used
Transistor (35 pieces) 6062 2SAs
2SC369bus logic circuit Three pieces
2SC693Gu 14 pieces
2SC694G Five pieces
7341 2SCs
9595 2SCs
2185 2subset dependencies
Diode (13 pieces) 134 DSs
DS16B Three pieces
346 subset dependencies
Varistor (two pieces) STV-03 2 piece
Supply voltage AC100V, 50Hz60Hz
Power consumption 170W (at the time of the maximum output)
Dimensions Width 450x height 160x depth of 268mm
Weight 11kg
