Luxman L-510

Opublikowano: 01 lipiec 2010
0.00


Producent: Luxman
Dodany przez: audiofilek PL

OPIS:

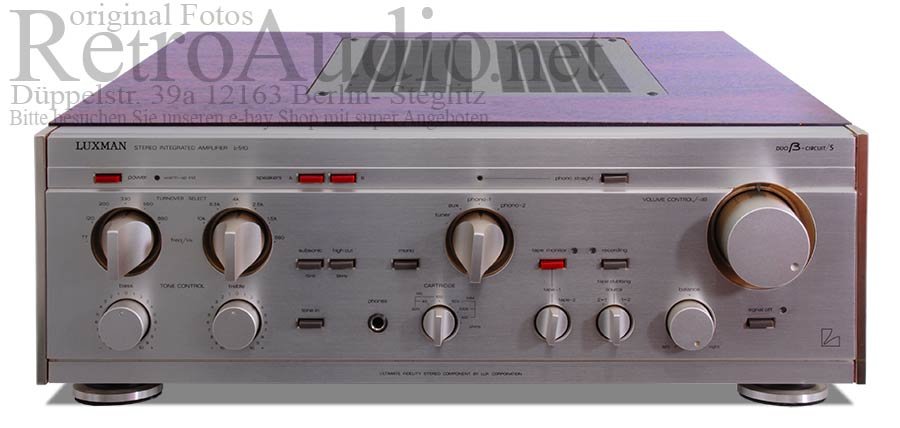

Luxman L 510

1981+

Form Integrated amplifier
Effective output (both channel operation) Class-A area: 8W+8W (8ohms)
AB class maxima: 100W+100W (8ohms)
THD 0.007% or less (8 ohms, both channel operation, 8W)
Input sensitivity Phono MM:2mV
Phono MC: 125 microvolts
Tuner, AUX, Monitor, Main In: 310mV
Input impedance Phono man month: 100kohm, 50kohm, 100ohms
Phono MC: 300 ohms, 100ohm, 40ohm
Tuner, AUX, Monitor:40kohm
Main In: 47kohm
SN ratio (IHF-A) Phono MM:84dB
Phono MC: 67dB (250-microvolt input)
Tuner, AUX, Monitor, Main In: 110dB
Frequency characteristic 10Hz - -100kHz one dB
Tone control Low-pass turnover: 77Hz, 120Hz, 200Hz, 330Hz, 550Hz, 880Hz
High region turnover: 880Hz, 1.5kHz, 2.5kHz, 4kHz, 6.5kHz, 10kHz
The maximum variation: ±8dB
Tapes monitor Two lines (Tape1, 2)
Tapes dubbing Two lines (1->2, 2->1)
Light filter Subsonic speed: 15Hz
A high cut: 9kHz
Power consumption 365W
Dimensions Width 453x height 161x depth of 444mm
Weight 17.3kg

źródło: audio-database.com/LUXMANALPINE-LUXMAN/amp/l-510-e.html
