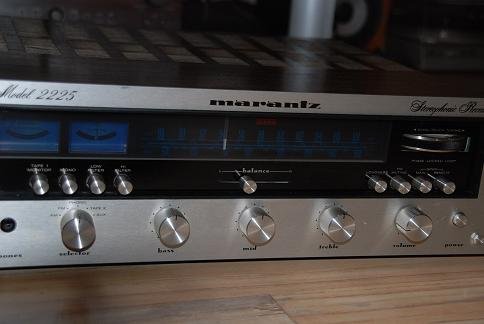

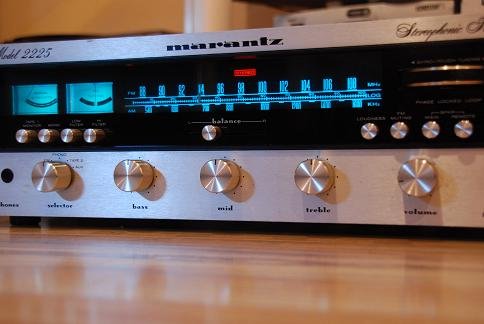

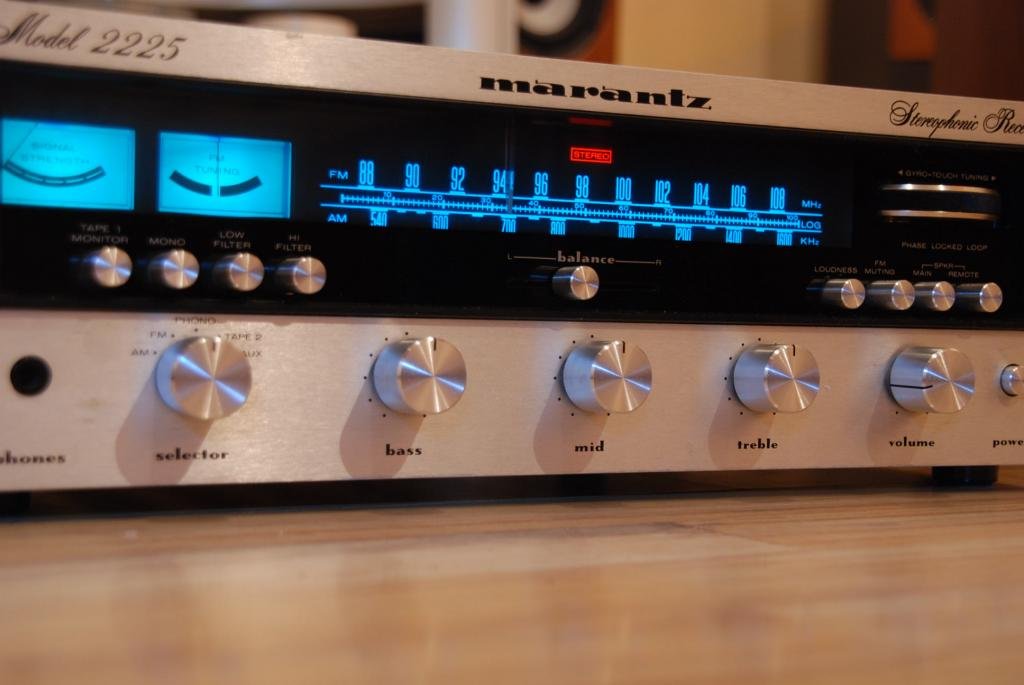

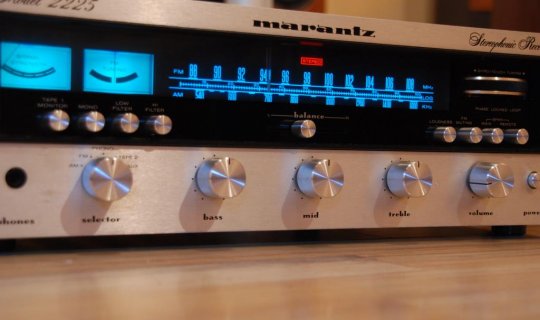

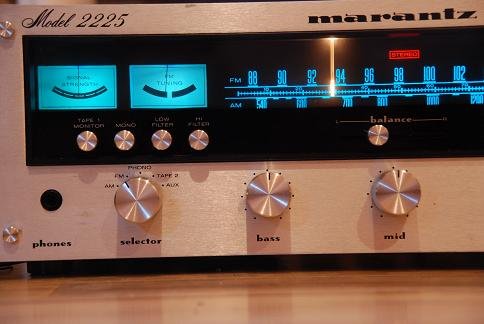

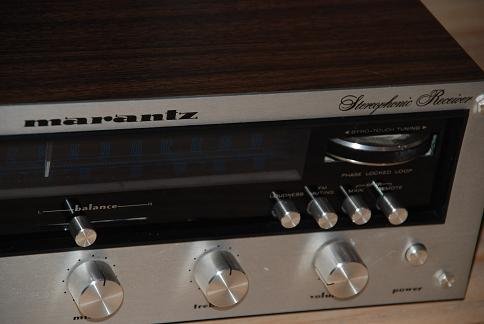

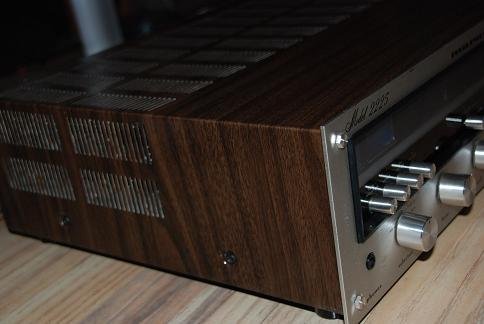

Marantz 2225

Opublikowano: 29 marzec 2010
0.00


Kategoria: Amplitunery
Producent: Marantz
Dodany przez: audiofilek PL

OPIS:

GENERAL
Rarity Rare
Retail Price 370
Designed in USA
Manufactured In Japan
First Year 1976
Last Year 1977
Wood Case WC-22
Blue Face Yes
Channels Two
Speaker Connections Two sets
Chassis Ground Knurled Screw
AC Switch Yes
Fusing Rear deck 2 amp buss
Switched AC Outlets 1 at 60 watts
Unswitched AC Outlets 1 at 200 watts
Power Consumption 130 Watts

PHYSICAL
Panel Width 17 3/8ths
Panel Height 5 3/8ths
Depth 14
Weight 34.2 lbs

AMPLIFIER
RMS Power Per Channel 25
Damping Factor @ Load Impedance 45 at 8 Ohms
Total Harmonic Distortion (THD) 0.5%
Power Bandwidth 20Hz to 20 kHz
Frequency Response 20 Hz to 20kHz ą1.0 dB
Intermodulation Distortion (IM) 0.5%

FM TUNER
Gyro Tuning Yes
RF Sensitivity 2.2 uV
300 Ohm Binding Posts Press to fit
75 Ohm Binding Posts Press to fit
50 dB quieting sensitivity, Stereo 5.0 uV
THD, Mono 0.3 %
THD, Stereo 0.5 %
Capture Ratio 2.5 dB
IF Image Rejection 65 dB
IF Rejection 80 dB
Spurious Rejection 90 dB
AM Carrier Rejection 45 dB
Stereo Separation at 1 kHz 40 dB
Mono Switch Yes
Signal Strength Meter Yes
Center Tuning Meter Yes
Muting Switch Yes
25 uS Deemphasis Switch (Dolby Associated) Yes
Quadradial Output (FM Discriminator output, unequalized) Yes

AM TUNER
RF Sensitivity 25 uV
External Ferrite Antenna Yes
Antenna binding Posts Yes

PREAMPLIFIER
Single Bass Adjustment Yes
Single Midrange Adjustment Yes
Single Treble Adjustment Yes
High Filter Yes
Gain Control Yes
Loudness Contour Yes
Balance Yes
Number of Tape Monitors 1
Auxillary Input Source Yes
Phono Input Source Yes
Tuner Source Input Yes
Source Tape Input (as opposed to a tape monitor) Yes
2nd Source Tape input (as opposed to a tape monitor) Yes
Tape Monitor Yes
2nd Tape monitor Yes
Speaker Selection Nomenclature Main, Remote

źródło: www.classic-audio.com
