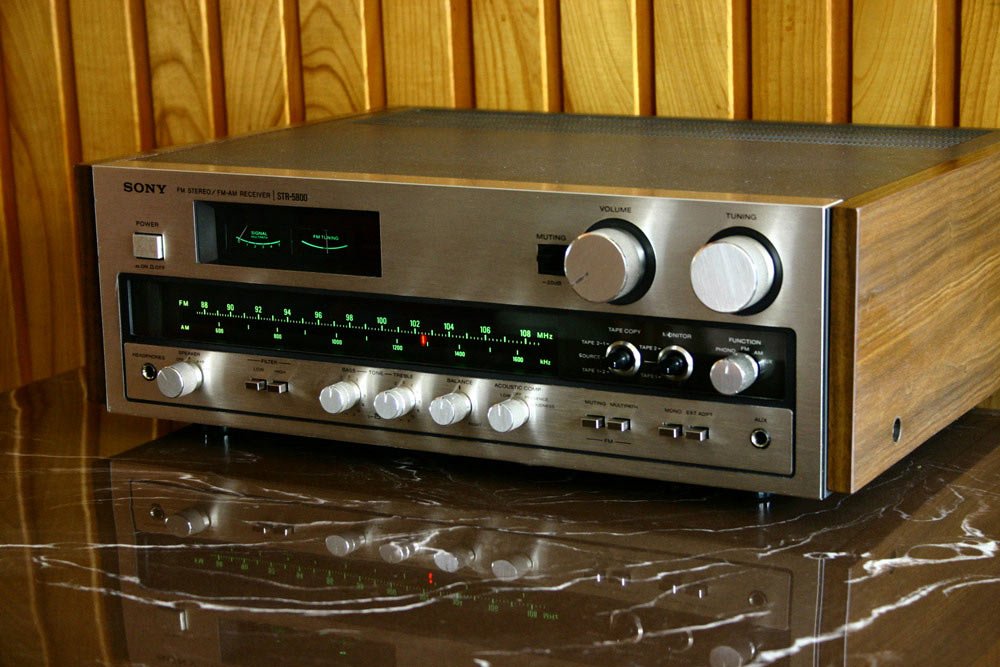

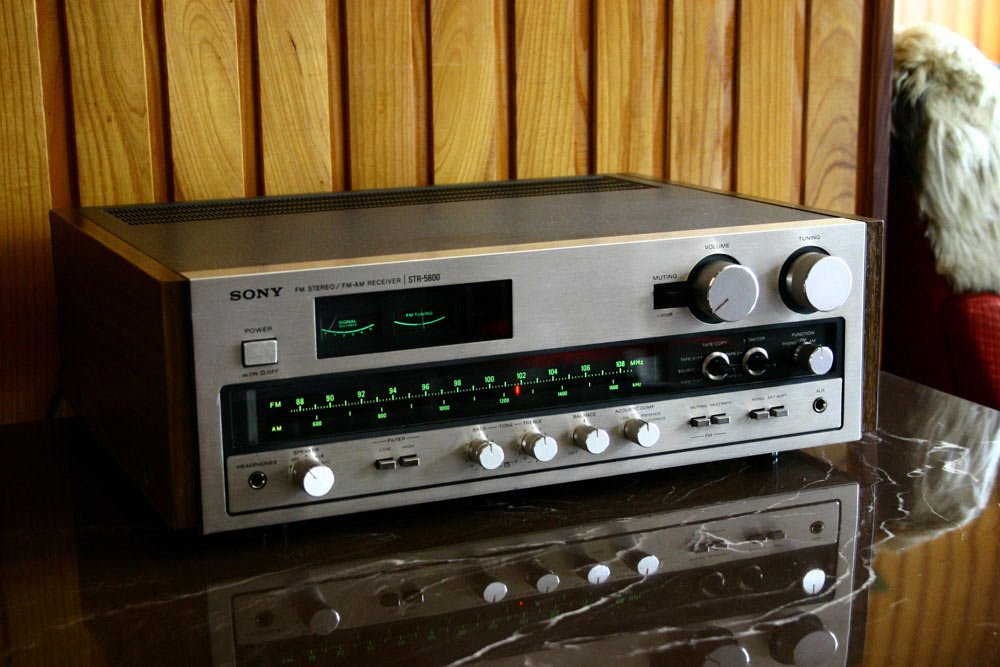

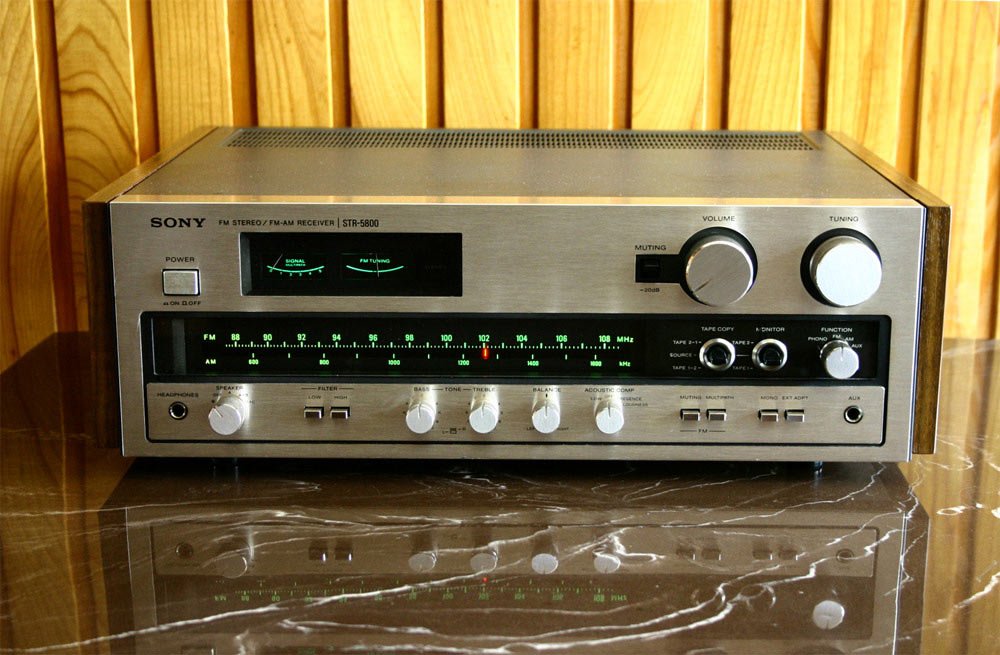

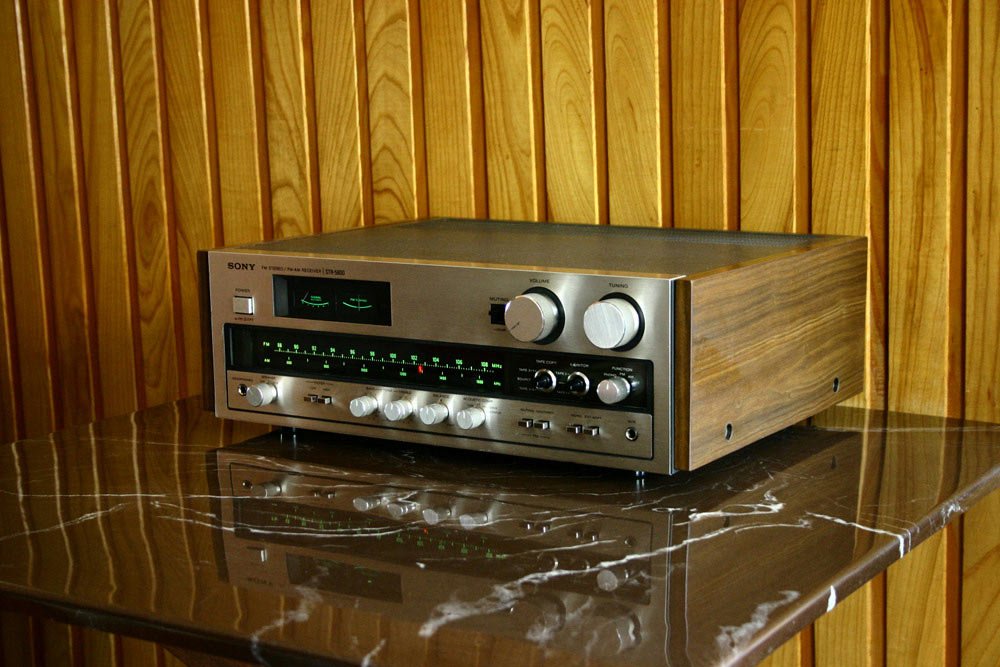

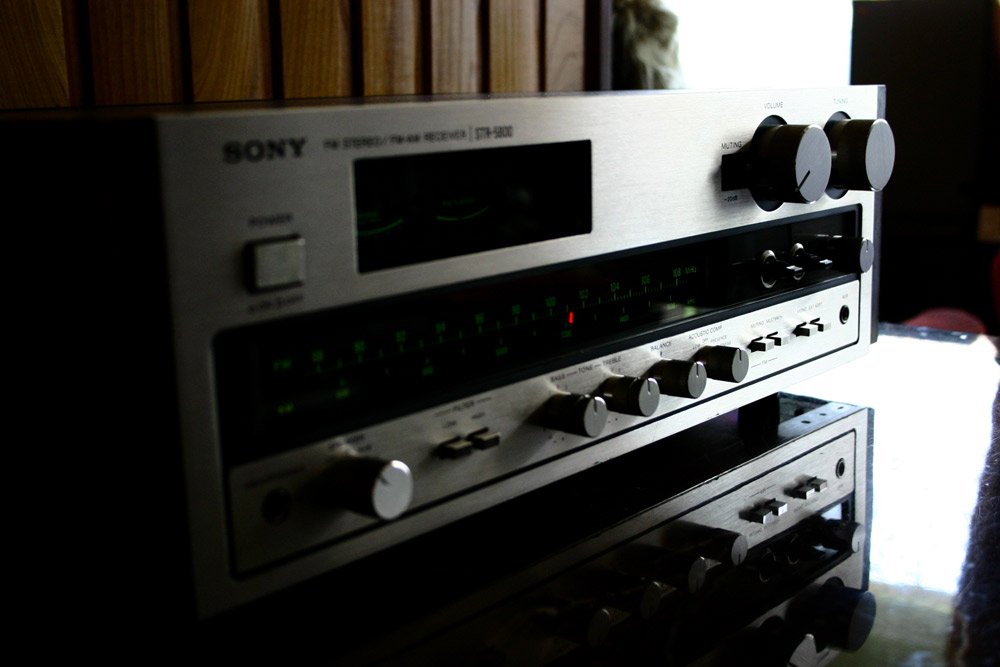

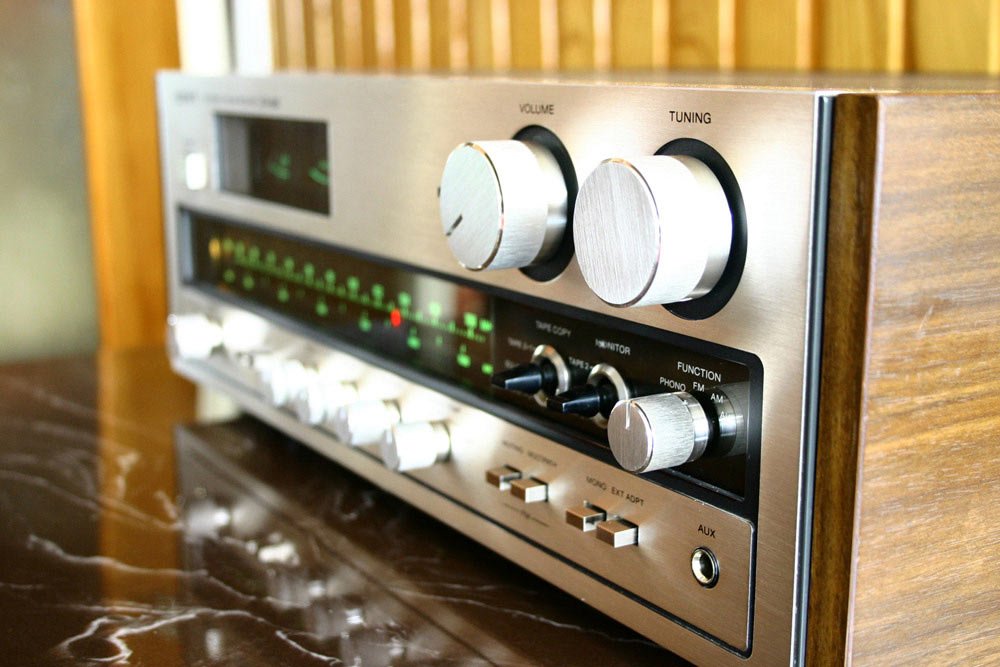

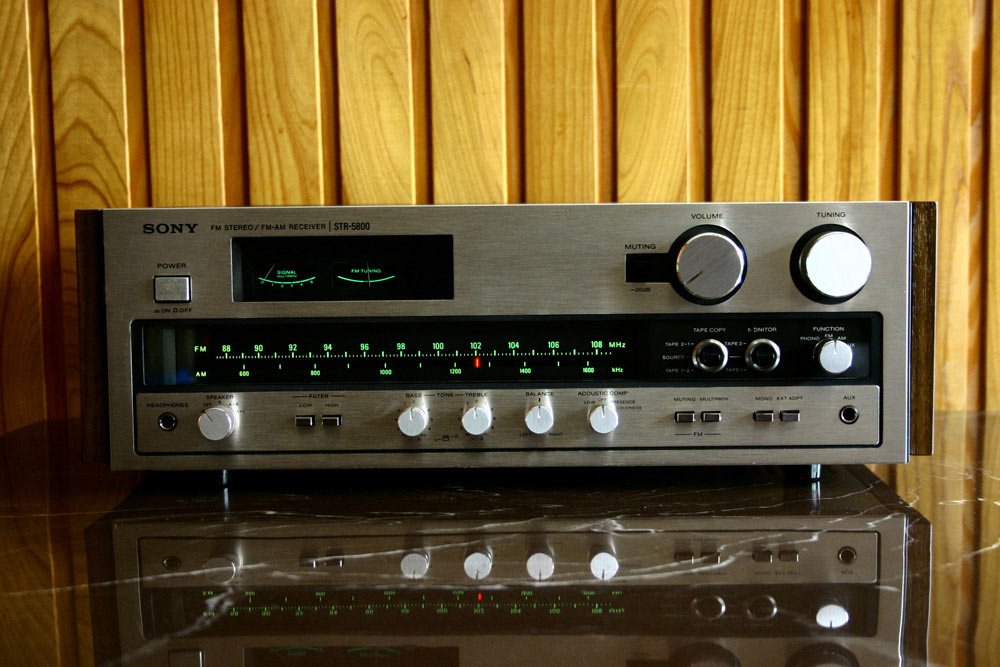

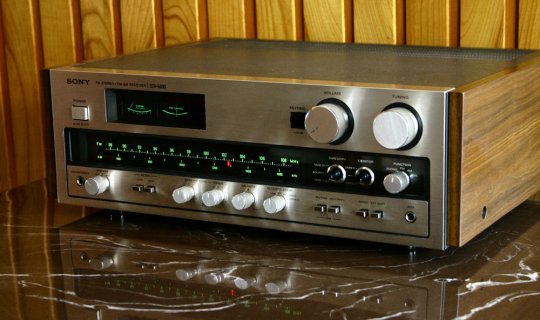

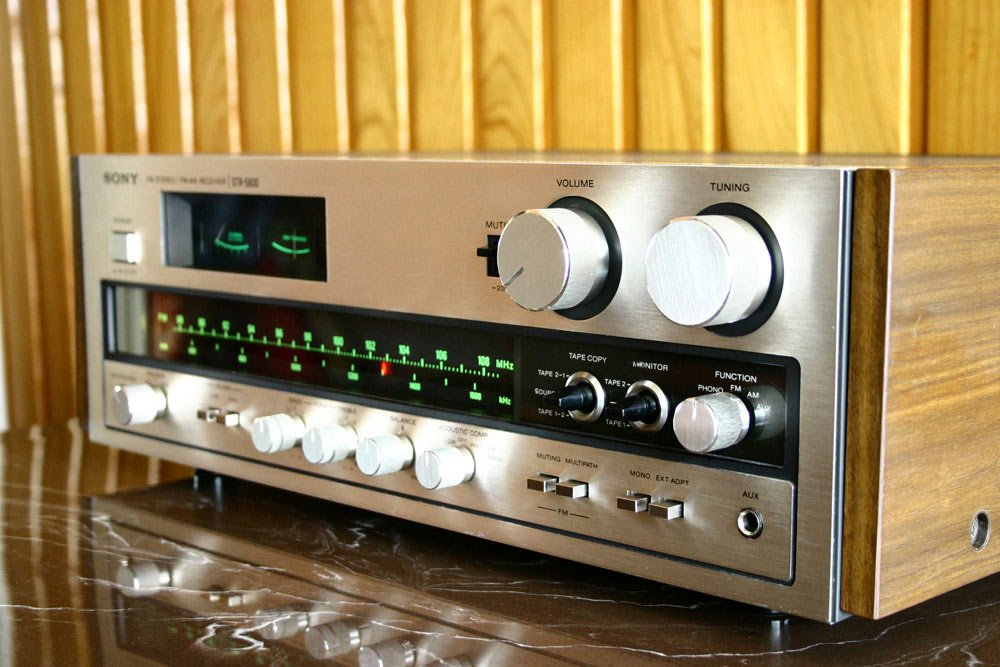

Sony STR-5800
1978

General
System: Analog Transistor Receiver
Colour: 1=Silver, 2=Black: 1

Pre Amplifier

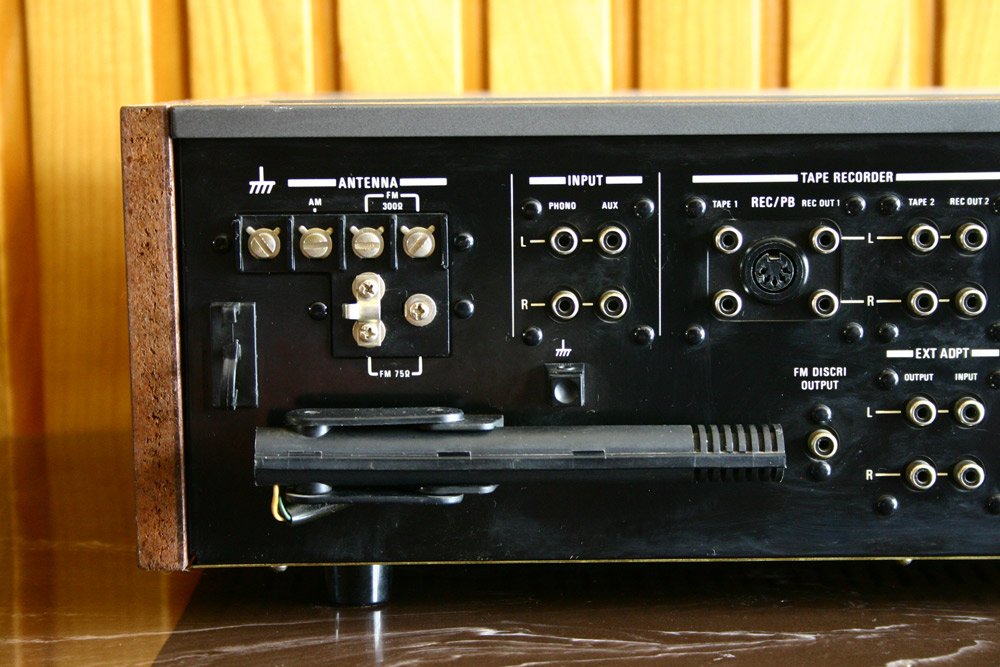

Inputs: Phono MM; Tape I-III; AUX; EXT ADAPT
Quadro: no
Inp. Sensitivity High Level: 250 mV
Inp. Impedance High Level: 100 k?
Inp. Sensitivity Phono MM: 2.5 mV
Inp. Impedance Phono MM: 47 k?

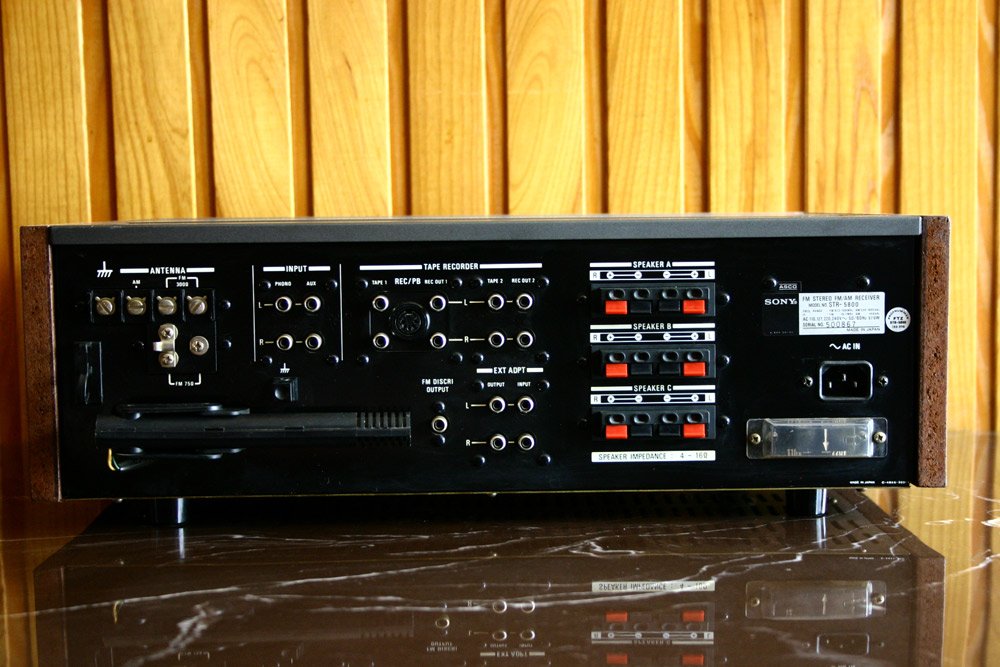

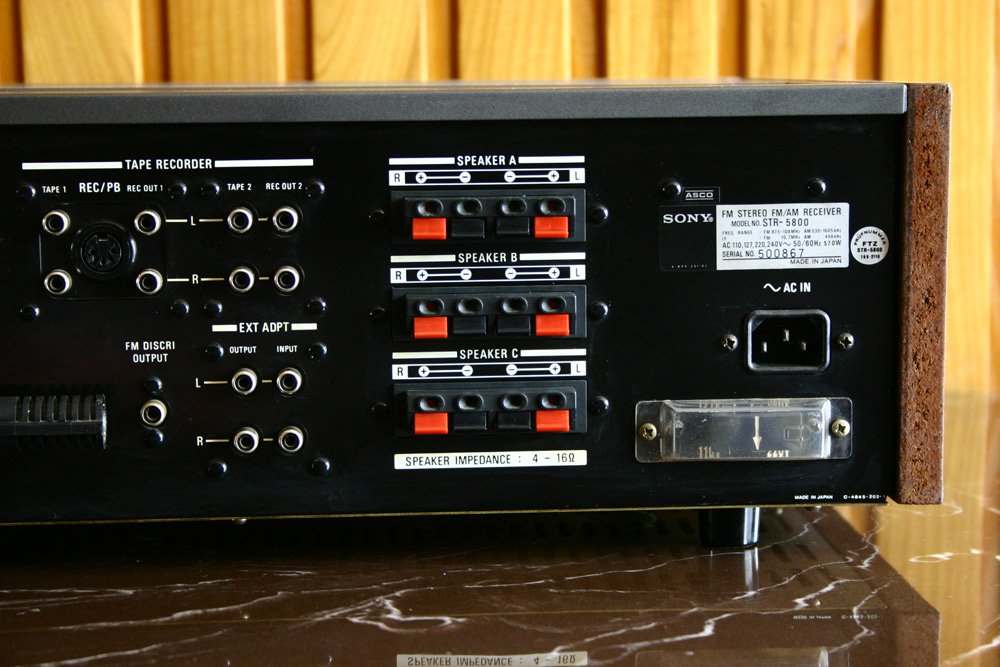

Outputs: 2 REC OUT; EXT ADPT; FM DiSCRI
Equalizer

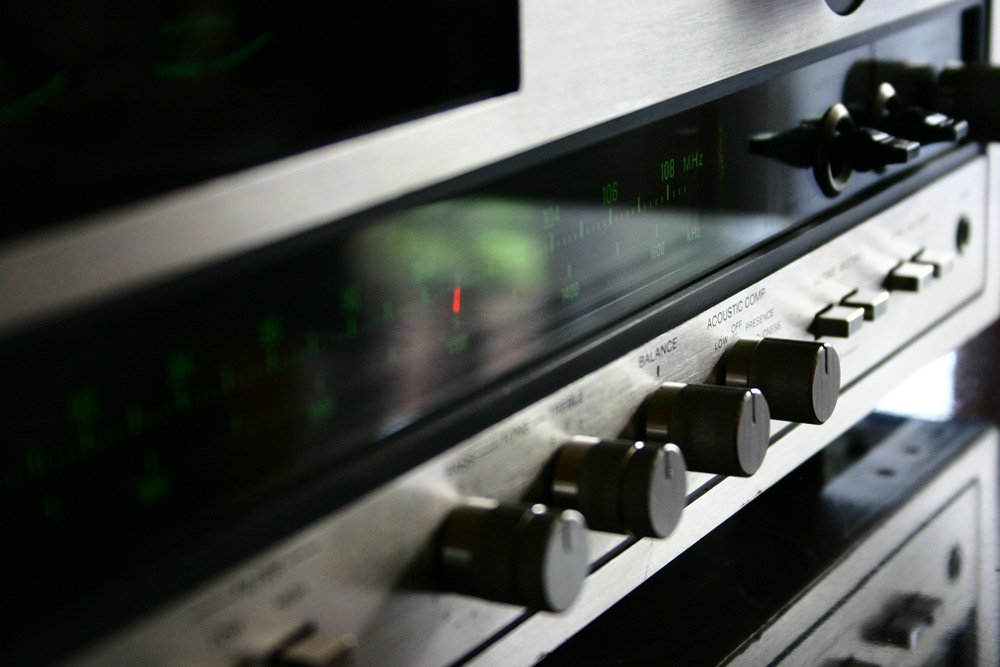

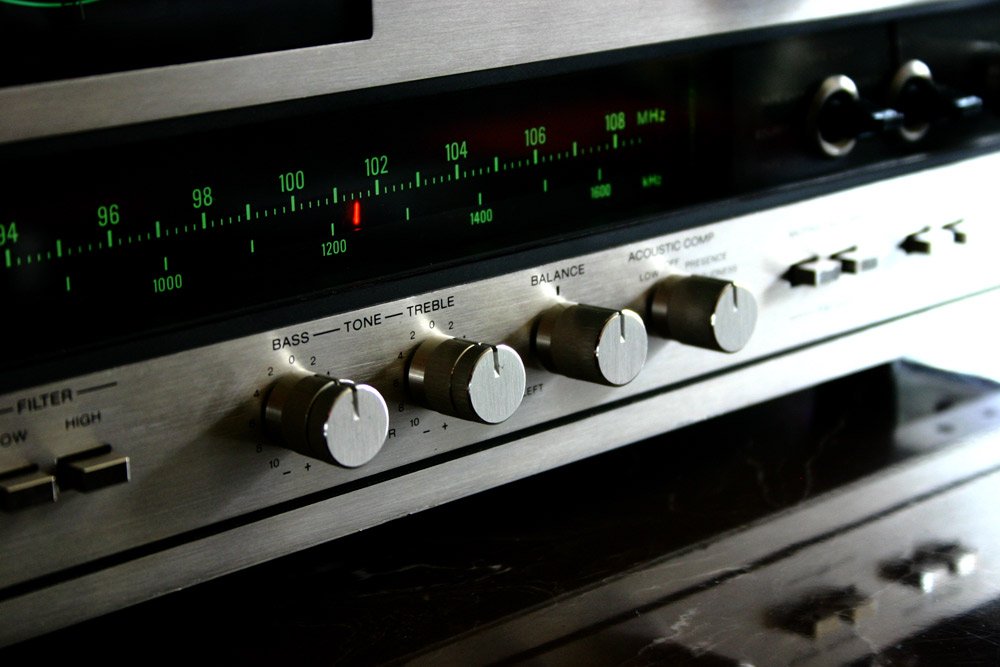

Tone Controls: Bass; Treble
Filters: LOW; HIGH
Loudness: yes

Power Amplifier
Continuous power 8?: 60 + 60 Watts
Frequency Response: 10-30,000 HZ
Harmonic Distortion: 0.2 % at rated output

Tuner
Display: analog
Frequency Range FM: 87.5-108 MHz
Frequency Range AM: 530-1,605 KHz
Station Preset: 0
Signal Strength Meter: 1 : 0=NO, 1=YES
Center Tuning Meter: 1 : 0=NO, 1=YES


Physical
Dimensions in Inches: 19.3 x 6.7 x 16.3 (w) x (h) x (d)
Dimensions in mm: 490 x 170 x 415 (w) x (h) x (d)
Weight in lbs: 33.9 lbs
Weight in Kg: 15.4 Kg
