Marantz MR 230

Published on: 31 августа 2012
4.00


Раздел: Amplitunery
Производитель: Marantz
Created by: audiofilek PL

COM_DJCATALOG2_FULL_TEXT:

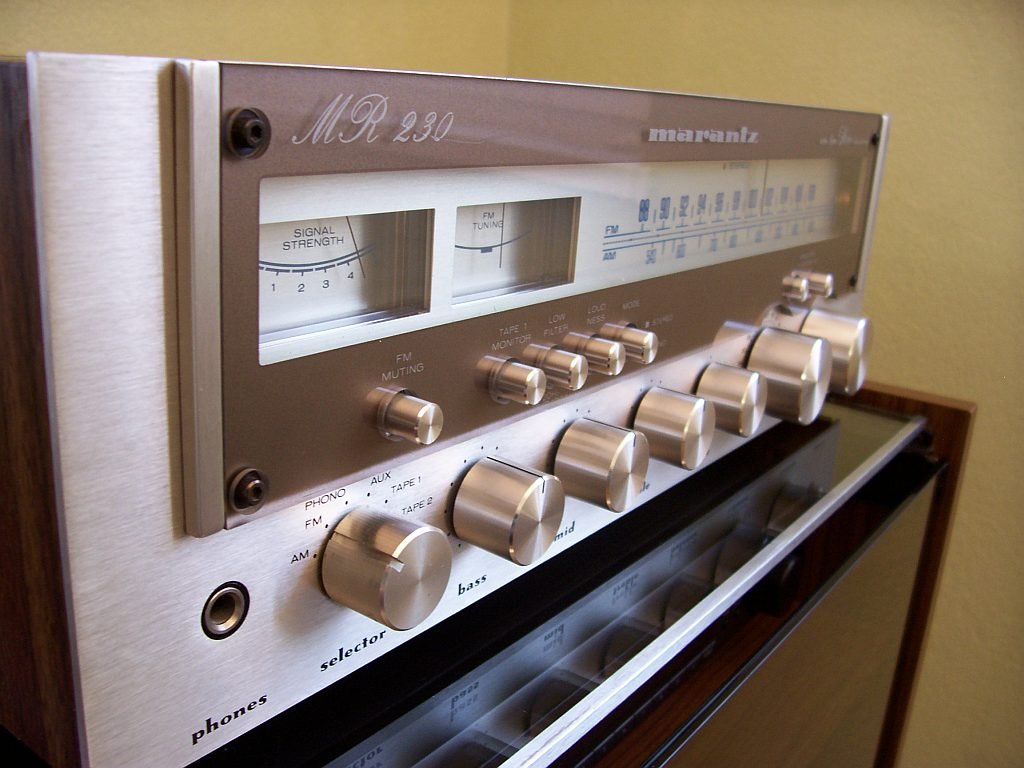

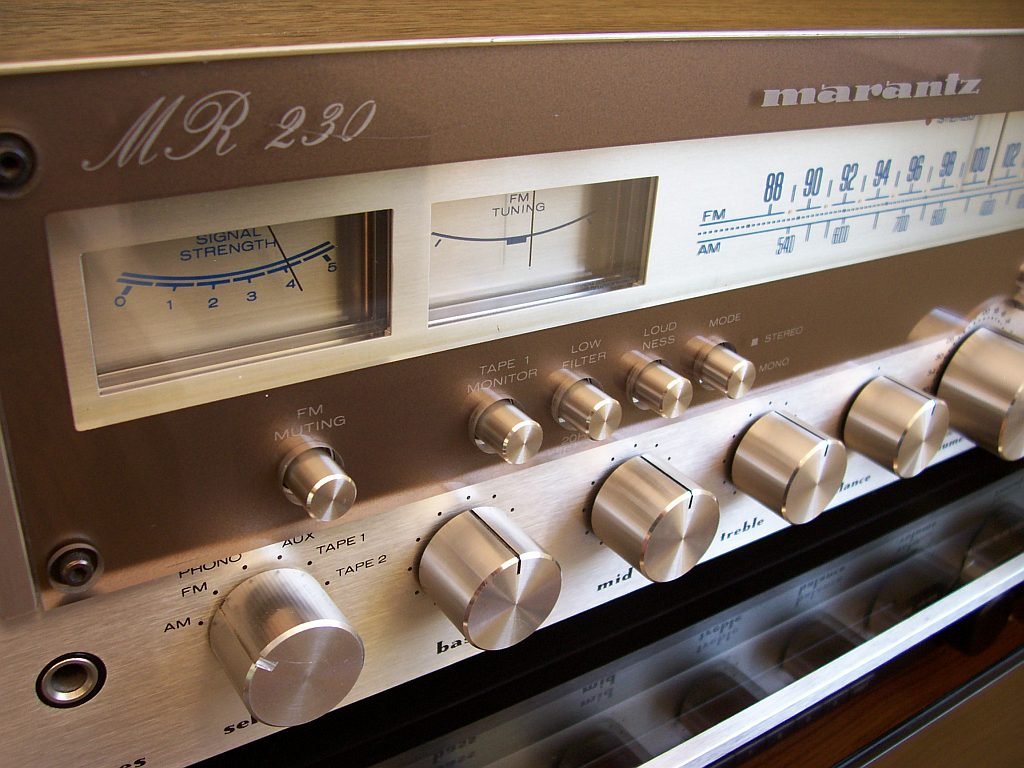

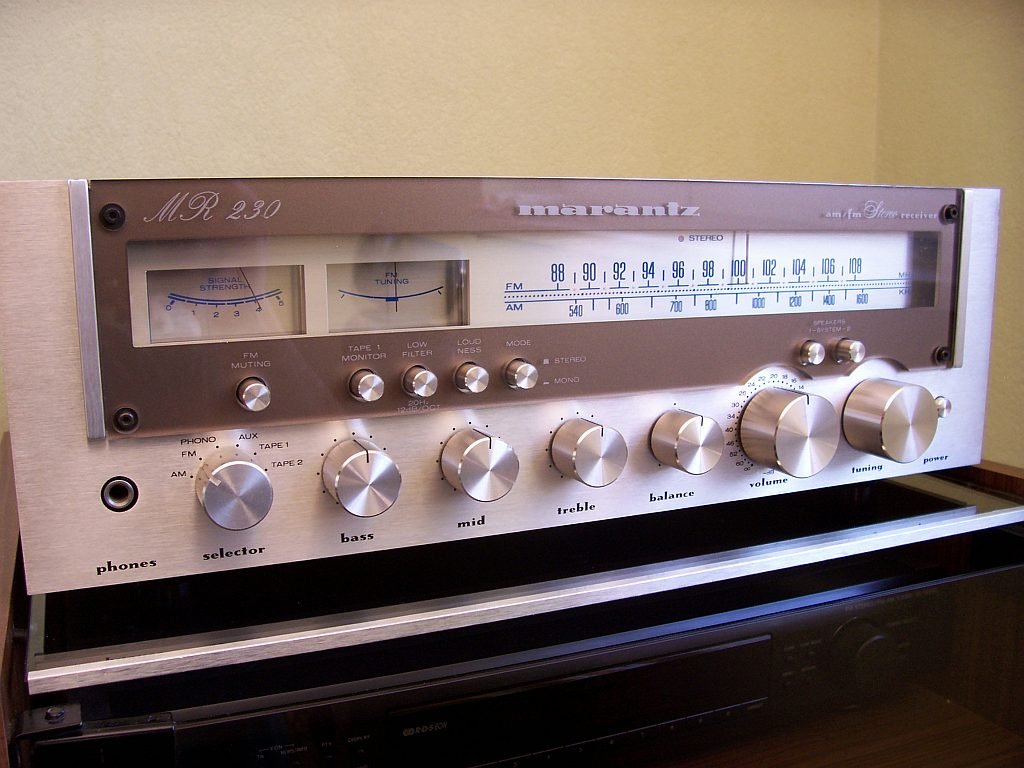

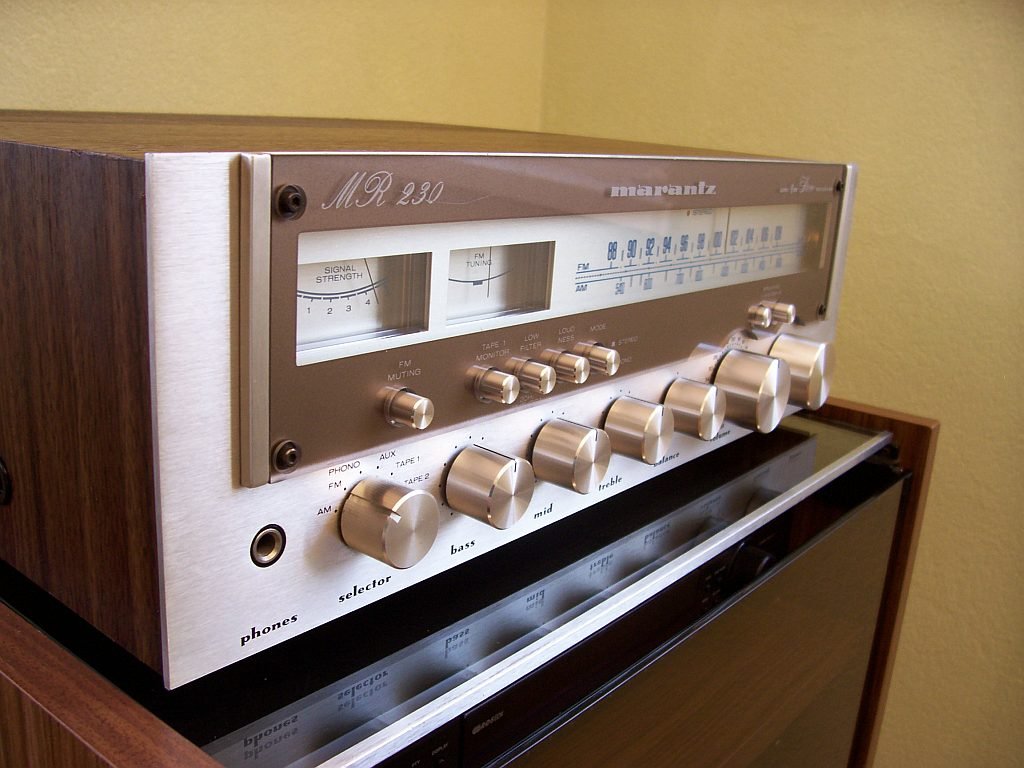

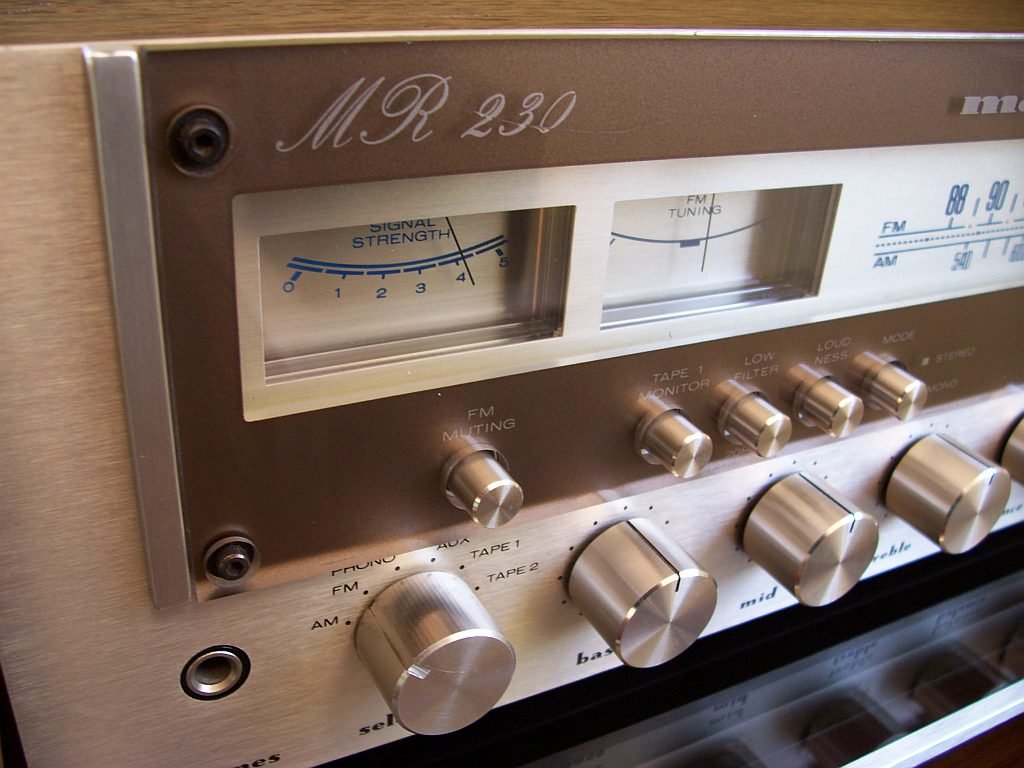

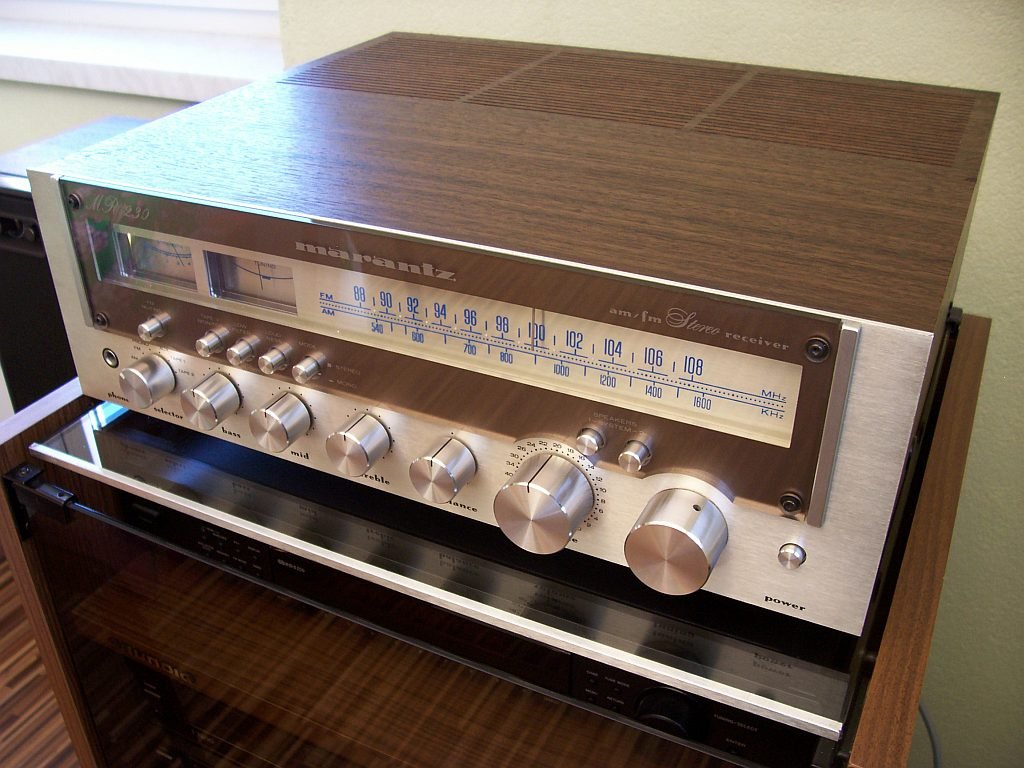

Marantz MR230

zdjęcia środka MR 230 (inside)
------------------------------
http://audiofilek.pl/index.php/home?sobi2Task=sobi2Details&catid=4&sobi2Id=1410

model wyższy Marantz MR 250
------------------------------------------
http://audiofilek.pl/index.php/home?sobi2Task=sobi2Details&catid=0&sobi2Id=1613




Rated output per channel:
DIN 4 ohms (1 kHz): 56 W
FTC 4 ohms (20 Hz - 20 kHz): 33 W
DIN 8 ohms (1 kHz): 48 W
FTC 8 ohms (20 Hz - 20 kHz): 30 W
Total Harmonic distortion at rated output: 0.15%
Damping: 30


Frequency response:
Phono (RIAA): ±1 dB
Aux (±1dB): 18 - 30 Hz/kHz
Main in (± 1 dB): 18 - 30 Hz/kHz
Signal/Noise ratio:
Phono: 72 dB
Aux. Output: 80 dB
Input Sensitivity/Imp:
Phono: 2.8/47 mV/k ohms
Auxiliary: 180/20 mV/k ohms


Separation:
Phono (1 kHz): 35 dB
Aux. (1 kHz): 43 dB
Main in (1 kHz): 55 dB


FM Stage (87.5 - 108 MHz):
Sensitivity:
DIN Mono (S/N 26 dB 75 ohms): 1 µV
DIN Stereo (S/N 46 dB 75 ohms): 25 µV
IHF Mono: 10.8/1.9 dBf/µV
Selectivity/Adjacent channel 98 MHz ± 300 Hz: 65 dB
Signal/Noise ratio 98 MHz:
Unweighted:
Mono: 62 dB
Stereo: 55 dB
Weighted:
Mono: 66 dB
Stereo: 60 dB


MW stage (525 - 1605 kHz):
Sensitivity (26 dB S/N 30% mod. 1 MHz): 30 µV
Selectivity: 20 dB


LW stage (150 - 350 kHz):
Sensitivity (26 dB S/N 30% 250 kHz): 250
Selectivity (250 ± 9 kHz): 24


Width: 440mm
Height: 137mm
Depth: 358mm
Weight net: 11.0kg
Задать вопрос по этому товару
Ocena
4.00
Log-in to add review

Users' reviews

Name: piootr
04.09.2012
4.00

mam model MR250 w idealnym stanie - to bardzo udany amplituner - wizualnie ślicznie się prezentuje i gra też przyzwoicie.
