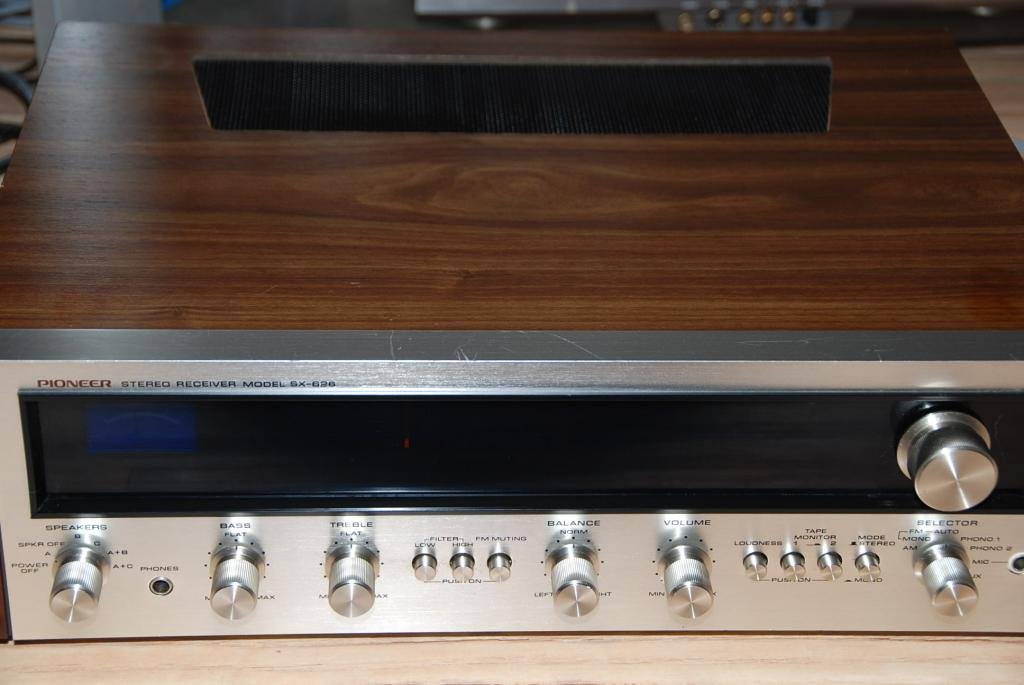

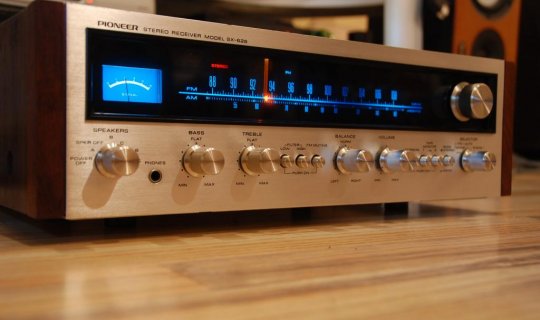

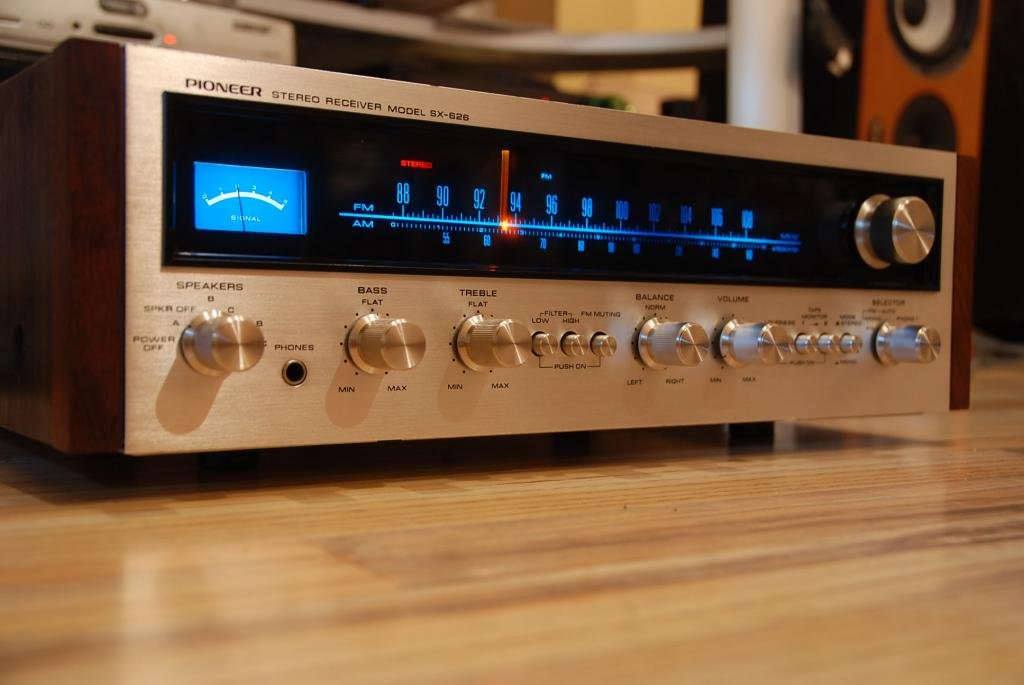

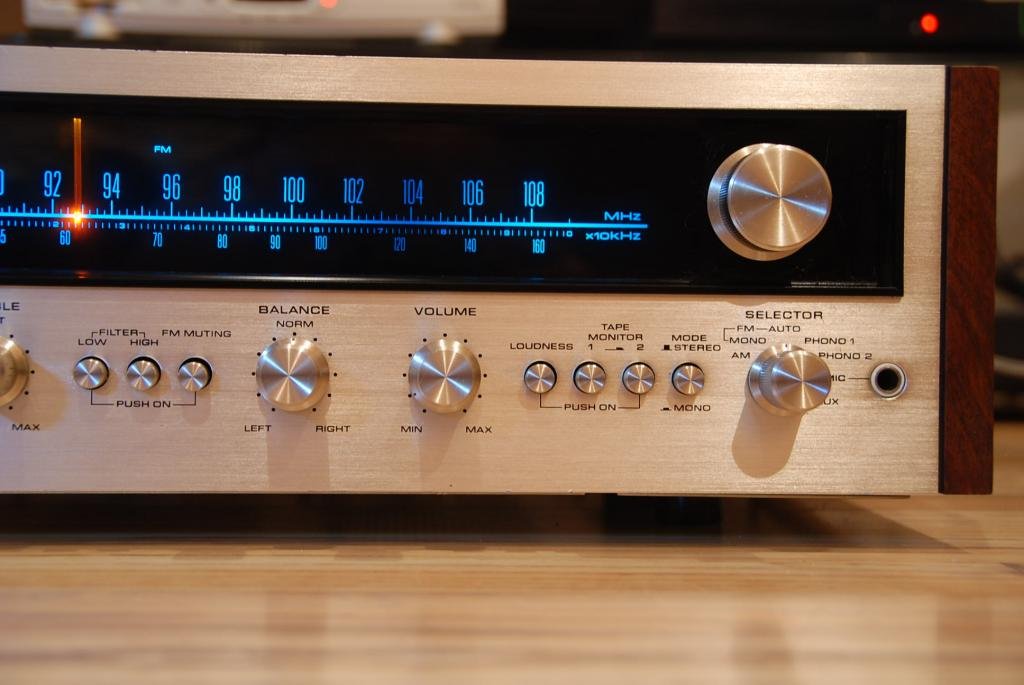

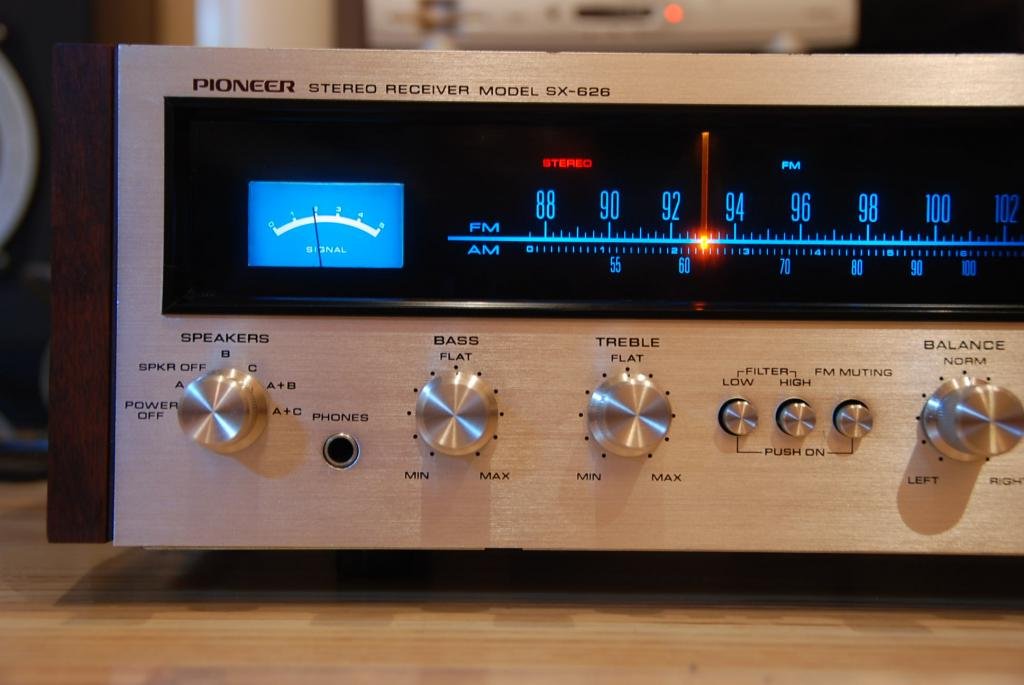

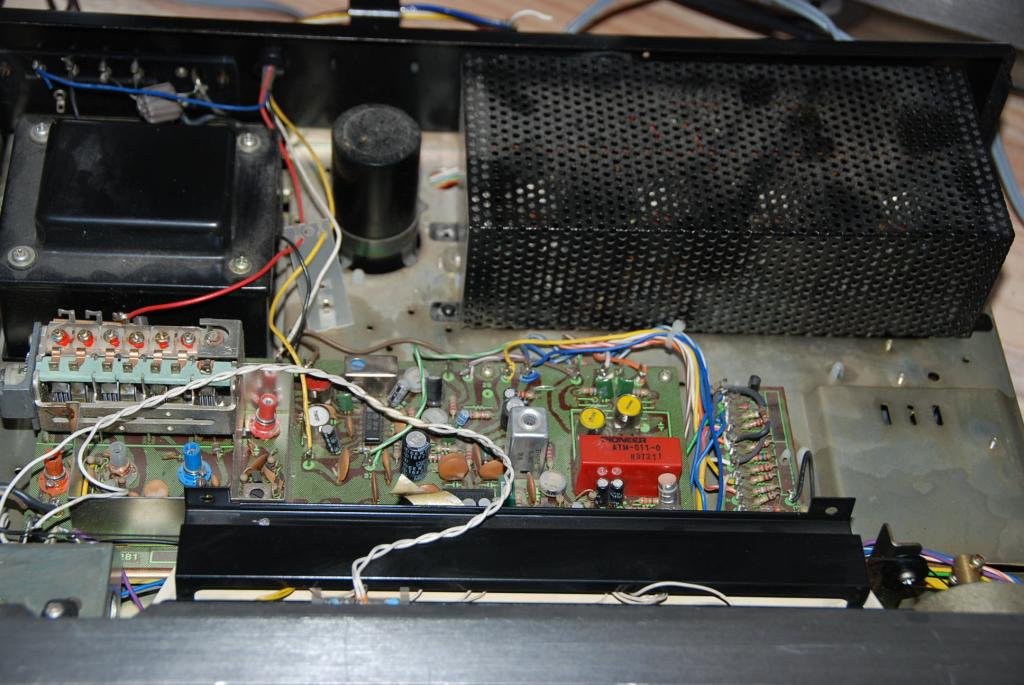

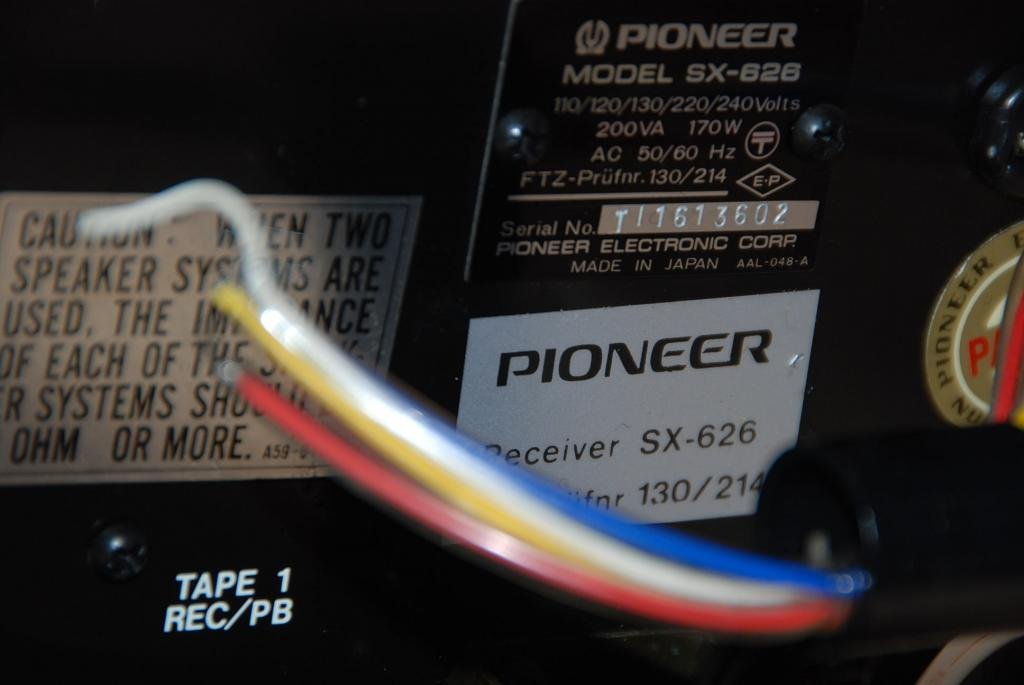

Pioneer SX 626

1971-1973
Możliwość podłączenia 3 par kolumn
impedancja 4 - 16 ohm
Moc wyjściowa ok.2x 27W. 8 ohm
Zakresy:
FM 88MHz - 108MHz,
AM 525kHz - 1605kHz.
Wymiary: 18 x 14 x 6 (cm)
Waga 10kg,



General
Description AM-FM Receiver
First Year 1971
Years Manufactured 1971-1973
Last Year 1973
Blue Face Yes
Silver Face Yes
Channels Two
IC Count 4
FET Count 4
Transistor Count 41
Diode Count 22
Speaker Connections Three sets, 2 sets of screws, one euro-plug set
Chassis Ground Knurled metal knob
AC Switch Yes
Fusing AGC for power, AGCx2 for speaker outputs
Switched AC Outlets One
Unswitched AC Outlets One
Power Consumption 170 watts

Physical
Panel Width 17 11/16ths
Panel Height 5 11/32nds
Depth 14 3/16ths
Weight 21 lb, 13 oz

Amplifier
RMS Power Per Channel 20 (20 Hz to 20 KHz, both channels driven, 1% THD)
Damping Factor @ Load Impedance 40 at 8 ohms
Power Bandwidth 10 Hz to 70 KHz
Frequency Response 5 Hz to 80 KHz
Intermodulation Distortion (IM) 1%
Input Impedance 50 K-Ohm
Input Sensitivity for Full Output 500 mv
Speaker Selection A,B,C
Output Impedance(s) 4 to 16 ohms

FM Tuner
RF Sensitivity 2.0 uV
300 Ohm Binding Posts Yes
75 Ohm Binding Posts Yes
THD, Mono 0.4%
THD, Stereo 0.5%
Signal to Noise Ratio, Mono 70 dB
Capture Ratio 2.5 dB
IF Image Rejection 80 dB
IF Rejection 100 dB
Alternate Channel Selectivity (wide or normal) 70 dB
Spurious Rejection 90 dB
AM Carrier Rejection 50 dB
Stereo Separation at 1 kHz 40 dB
Carrier Suppression 50 dB
Signal Strength Meter Yes
Stereo Lamp Yes
Muting Switch Yes

AM Tuner
RF Sensitivity 10 uV
Alternate Channel Selectivity 30 dB
IF Rejection 70 dB
Image Rejection 80 dB
Signal to Noise Ratio 50 dB
Signal Strength Metering Yes
External Ferrite Antenna Yes
Antenna binding Posts Yes

Preamplifier
THD 0.5%
Single Bass Adjustment +/- 11 dB at 100 Hz
Single Treble Adjustment -11 dB/+10.5 dB at 10 KHz
High Filter -9 dB at 10 KHz, 6 dB/octave
Low Filter -8 dB at 50 Hz, 6 dB/octave
Loudness Contour Yes
Mono Yes
Balance Knob
Number of Tape Monitors Two
Auxillary Input Source Yes
Phono Input Source Yes
2nd Phono Input Source Yes
Tuner Source Input AM/FM
Source Microphone Input Yes
Preamp to Amplifier Jumper(s) Yes
Headphone Jack(s) Yes
Speaker Selection Nomenclature A,B,C
Hum and Noise 95 dB at aux, 85 db at phono 1 or 2
Signal to Noise Ratio 95 dB at aux
Frequency Response 15 Hz to 20 KHz +/- 1 dB
Rated Output Level 500 mv
Maxiimum Output Level 3 V
